HW-2510 Full Intelligent Digital Box-making Machine
Engineered for high-throughput corrugated box production, the HW-2510 delivers intelligent 6-in-1 processing — slotting, scoring, creasing, trimming and handle die-cutting in a single pass. Backed by Huawei Machinery’s 15+ years of post-press expertise, CE-certified manufacturing, and 2 invention patents, it runs up to 800 PCS/h with board widths up to 2550mm — built for distributors and end-users demanding precision, speed, and minimal labor input.
- Max. Stripping Area: W2550mm × Unlimited Length
- Production Speed: 500–800 PCS/h
- Corrugated Board Thickness: 2–12mm
- Power Supply: 380V / 17KW
- Machine Dimension: 3800 × 2100 × 1700mm
- Gross Weight: 3600kg
Technical Parameters
| Function | Unit | HW-2510 |
|---|---|---|
| Max. Stripping Area | mm | W2550mm × Unlimited Length |
| Min. Stripping Area | mm | 200 × 650mm |
| Corrugated Board Type | — | Single Wall & Double Wall |
| Corrugated Board Thickness | mm | 2–12mm |
| Board Density Range | g/m² | ≤1000 g/m² |
| Production Speed | PCS/h | 500–800 PCS/h |
| Slotting Knife | mm | 2 × 500mm |
| Vertical Cutting Knife | — | 4 pcs |
| Creasing Wheel | — | 4 pcs |
| Horizontal Cutting Knife | — | 1 pc |
| Power Supply | — | 380V / 17KW |
| Air Pressure | — | 0.6–0.7 MPa, 30L/Min |
| Handhole On Box Sides | mm | 160 × 80mm |
| Dimension | mm | 3800 × 2100 × 1700mm |
| Gross Weight | kg | 3600kg |

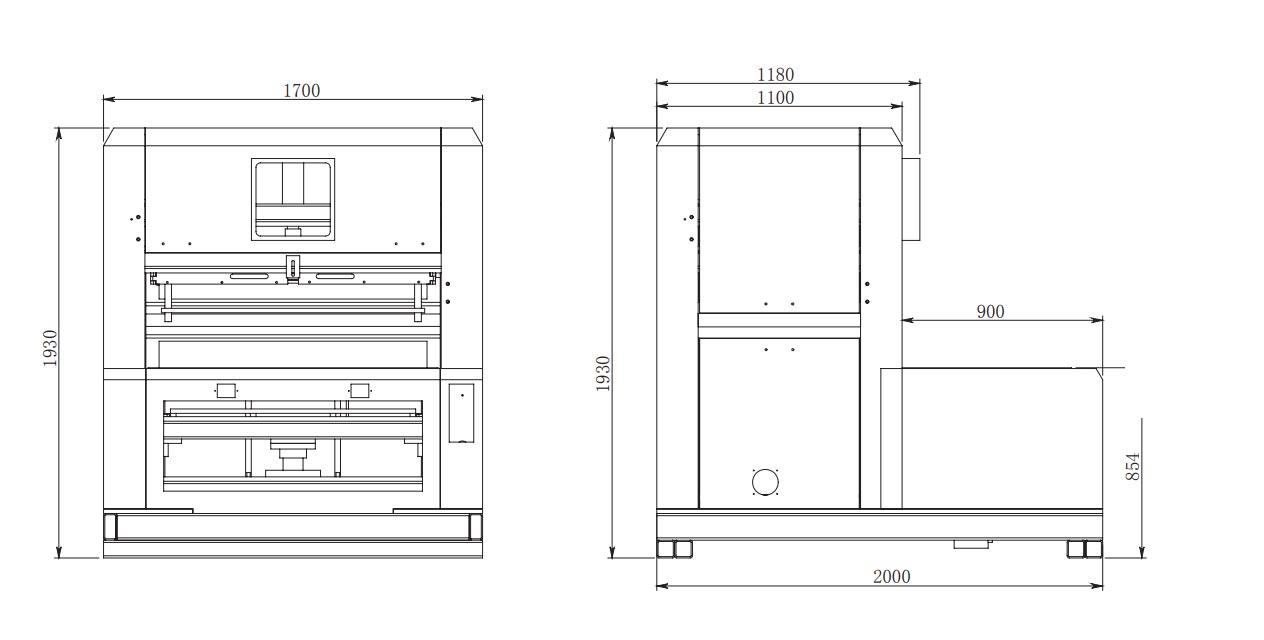

Technical Drawings
Core Features & Advantages
- Multi-Up Automatic Take-Out & Stacking — Realizes intelligent multi-product simultaneous take-out and automatic stacking, breaking away from the traditional single-product, single-operation mode.
- One-Person Multi-Machine Operation — A single operator can run multiple devices at the same time, significantly reducing labor cost while maintaining consistent output.
- Continuous Uninterrupted Production — Equipped with paper loading and pre-stack loading system, enabling simultaneous loading, feeding and peeling without production interruption.
- Wide Waste Discharge Channel — Paper scraps automatically fall into the waste discharge channel, eliminating the need for manual scrap removal during operation.
- Automatic Collection & Stacking System — Finished products are automatically collected and stacked neatly and orderly, ready to be moved directly to the next process.
