Overview:

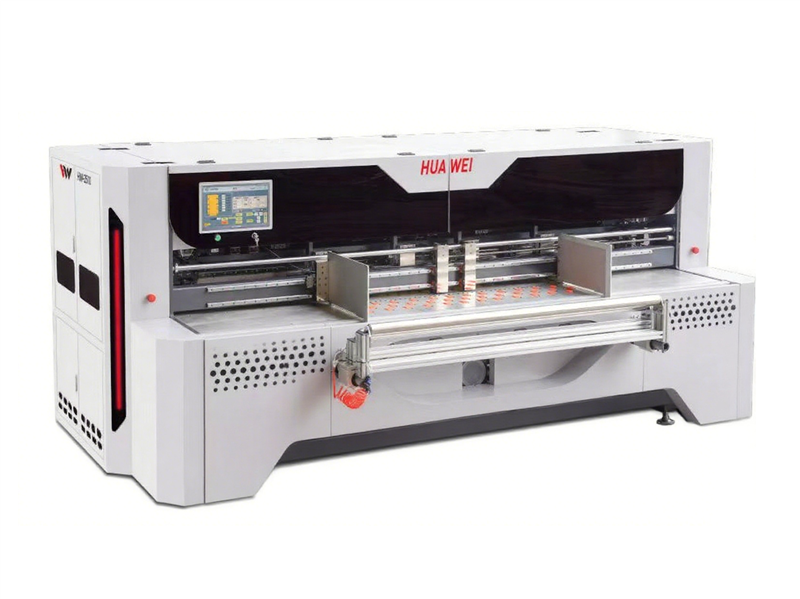

HW-2510 is a multifunctional machine with horizontal slotting and scoring, vertical slitting and creasing, horizontal cutting. It has the function of die-cutting handle holes on both sides of the carton box. It is now the most advanced and multifunctional box making machine, providing all kinds of customized packaging solutions for end users as well as box plants. HW-2510 is available for a wide range of many areas, such as furniture, hardware accessories, e-commerce logistics, many other industries, and so on.
Features:
1.One operator is enough
2.Competitive price
3.Multifunctional machine
4.Change the order in appr. 1-6 seconds
Technical specifications:
|
Function |
HW-2510 |
|
Max. Stripping Area |
W2550mm X Unlimited Length |
|
Min. Stripping Area |
200×650mm |
|
Corrugated Board Type |
Single Wall &Double Wall |
|
Corrugated Board Thickness |
2-12mm |
|
Board Density Range |
1000g/m2 |
|
Production Speed |
500-800PCS/h |
|
Slotting Knife |
2X500mm |
|
Vertcal Cutting Knife |
4 |
|
Creasing Wheel |
4 |
|
Horizontal Cutting Knife |
1 |
|
Power Supply |
380V 17KW |
|
Air Pressure |
0.6-0.7MPa, 30L/Min |
|
Handhole On Box Sides |
160X80mm |
|
Dimension |
3800×2100x1700mm |
|
Gross Weight |
3600kg |

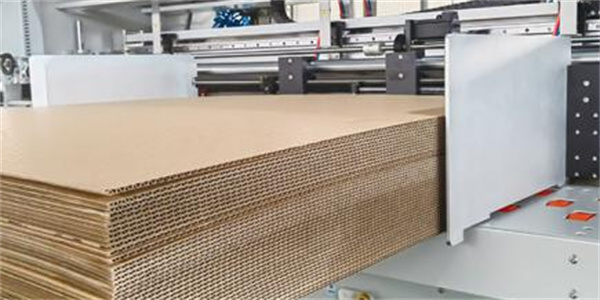

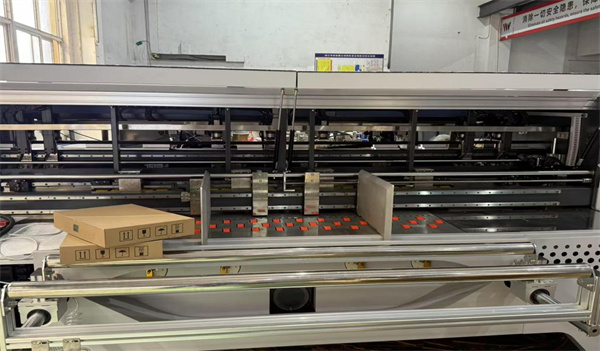

Cardboard Feeding:
20-50 sheets can be loaded, thickness ranging from 2 to 10 mm .

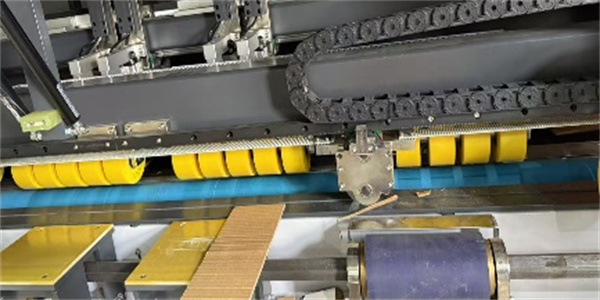

Horizontal Slotting & Scoring:
Two 500mm symmetrical slotting knives
Slotting knife and creasing beam integrated design.

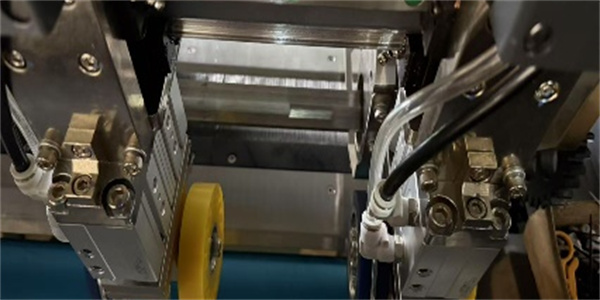

Vertical Slitting:
4 cutting knives, rotated by the servo motor to make the edges of the carton
box more beautiful and flat .

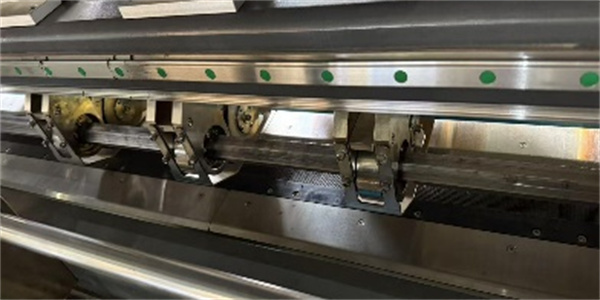

Vertical Creasing:
4 creasing wheels

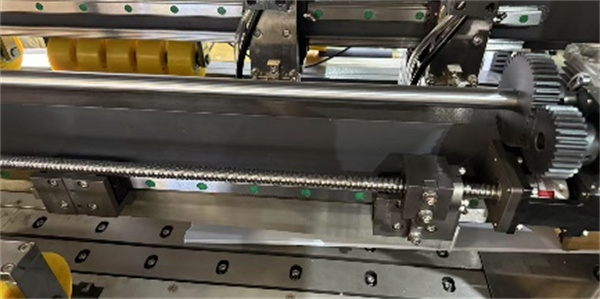

Horizontal Cutting:
Cut off excess cardboard without an additional paper separator

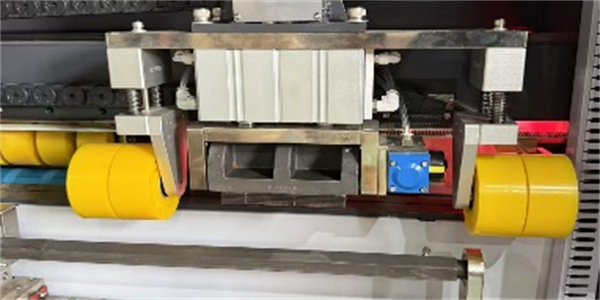

Die-Cuting Hand holes:
Die cut hand holes on the both sides of the box, including full cutting module.
